DARTON MID SLEEVES

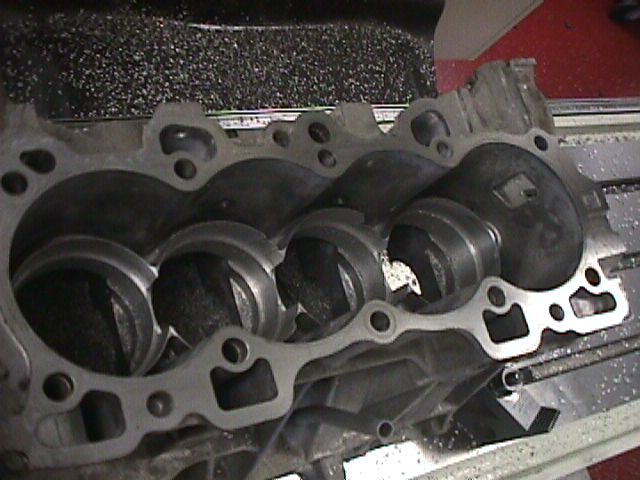

B16 Honda Sleeve Installation
Why Use Darton Sleeves?

DARTON has been manufacturing precision performance sleeves since 1978. Currently Darton are the major suppliers of performance sleeves throughout the United States and Canada. The reason for this market share is simple, a very high quality product at the most competitive prices available. The ASTM specifications for performance ductile iron sleeves indicates a minimum tensile strength of 100,000 pounds. DARTON SLEEVES are much stronger than this and will withstand the punishment these sleeves must endure in Top Fuel motors. In addition, DARTON sleeve material is much more abrasion resistant and harder on the surface than any other product available. This feature provides for good oil retention, ring seal, and the ultimate in leak down performance. DARTON performance sleeves in a "Race Ready" condition are in stock for most all popular applications.

Darton pioneered modular sleeve designs and specialty ductile iron material beginning with their manufacture of top fuel sleeves in 1978. Darton sleeves excel in the harsh environment of all-out racing. Their centrifugally cast nodular composition represents the highest quality of any cast material. The unique matrix of Darton's centrifugally cast nodular iron sleeves provides unexcelled surface toughness. Darton's unique casting process provides a bore finish which, while very tough, promotes quick and total piston ring seal for the most complete combustion possible from each cylinder.

Darton now has engineered a superior solution to open-deck sleeve weakness by using a unique design which creates a solid deck of sleeve flanges held in tension, reinforcing the upper deck area and provides for in-field replacement with what they call “Modular Integrated Deck” (MID).

The Darton MID kits feature

Improved block integral strength

 Improved cooling

• "Wet sleeve" replace-ability

• Increased horsepower output potential

• Superior oil and compression control

• Street or strip application

• Kits can be installed by your local machine shop

• Full installation manual with every kit sale

• Superior cylinder sealing and ring wear

• Ductile iron w/130,000 psi tensile strength

Darton sleeve kits also come in a standard “flanged” design for blocks with a closed deck.

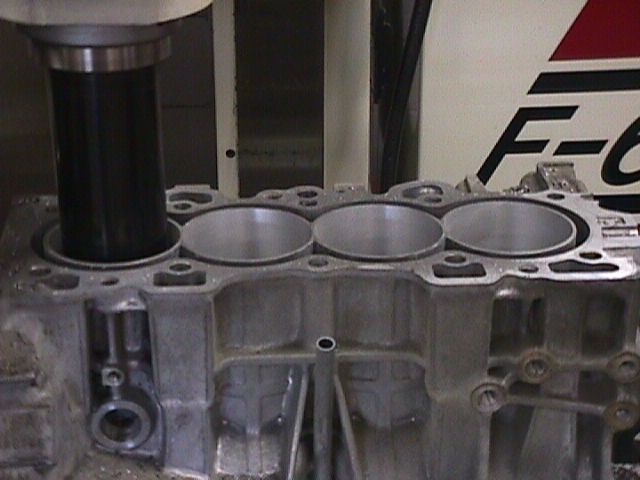

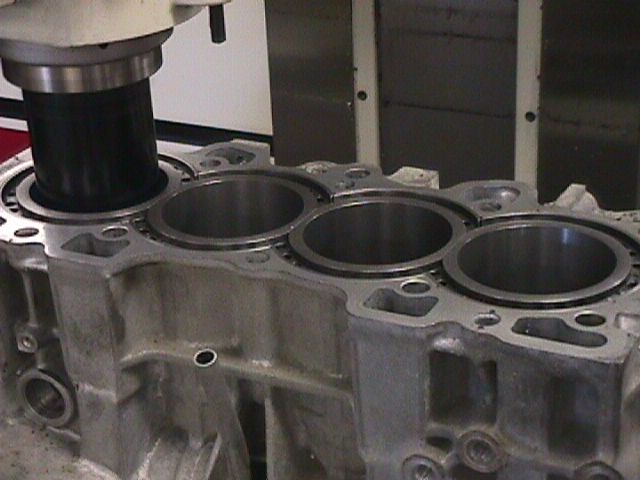

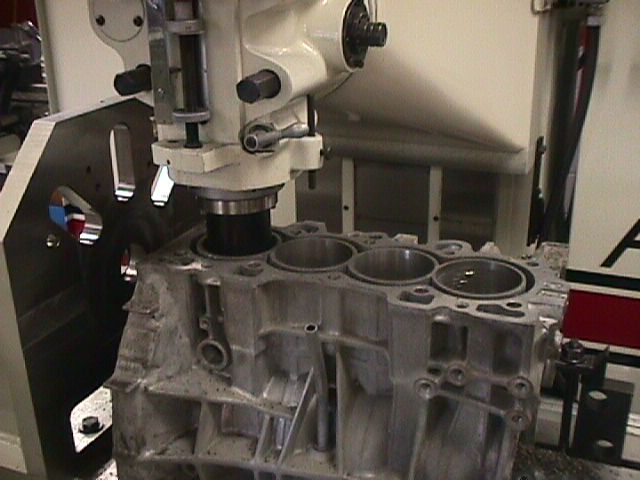

All sleeve installations are executed with CNC machinery , proper fixtures and factory authorized blueprinting procedures.
Machine deck surfaces of block for MLS (Multi Layered Steel) style gasket.Finish bore & diamond hone cylinder bores to precise tolerances.
Final clean, pressure test block and prep for shipment back to customer.

Darton MID sleeves included in price (For most Honda applications)

RETURN SHIPPING ADDITIONAL TO PACKAGE PRICE

Average turn-around time is 10 business days

Contact us @ 1-603-742-8812 to arrange sleeve installation for your project today.

DARTON SLEEVE INSTALLATION Sales and Installation
DARTON MID SLEEVE & INSTALLATION
DARTON MID SLEEVES INCLUDED IN PRICE
(For most Honda applications)
$ 1605.00

$ 1699.00
$ 1699.00
$ 1699.00
$ 1699.00
$ 1699.00
HONDA / ACURA DARTON MID SLEEVE
D16, B16A, B18A, B18B, B18C1-5
F20C / S2000
F22
F22C / S2000
H22, H23
K20, K24
NSX C30/C32
NISSAN DARTON MID SLEEVE
VQ35HR, VQ35DE
QR25DE
SR20DE Flange Sleeve Not MID
$ 2899.00
$ 1599.00
$ 1399.00
FORD DARTON MID SLEEVE
DURATEC
5.4 MODULAR IRON BLOCK
$ 1699.00
$ 3395.00
GM DARTON MID SLEEVE
ECOTEC™
LS-2, MID
$ 1699.00
$ 2799.00
DARTON SUBARU SLEEVES
EZ30 6 CYL.
EJ20, EJ22, EJ25
EG33 6CYL.
$ 1899
$ 1899
$ 1899
Labor only:     Prices subject to change
4cyl. $950
V-6   $1350
V-8  $1650
AEBS SLEEVES
HONDA / ACURA AEBS SLEEVES
D16, B17, B18, B20
H22A/H23, D15/D16 C30A/C32B NSX
K20A
K24
F20c
$ 1599.00
$ 1599.00
$ 2399.00
$ 1699.00
$ 1699.00
$ 1699.00
NISSAN AEBS SLEEVES
QR25
VQ35DE
SR20DE
$ 1599.00
$ 2449.00
$ 1599.00
SUBARU AEBS SLEEVES
EJ20, EJ25
$ 1799.00
COMPLETE PACKAGE INCLUDES:
  • SLEEVES
  • CLEAN & INSPECT BLOCK PRIOR TO MACHINE WORK
  • BLUEPRINT MACHINE BLOCK FOR DARTON MID SLEEVES
  • INSTALL SLEEVES
  • MACHINE DECK SURFACE OF BLOCK FOR MLS STYLE GASKET
  • FINISH BLUEPRINT BORE & POWER HONE CYLINDER BORES TO SIZE
  • OVER BORE ADD $100
  • FINAL CLEAN BLOCK, AND PREP FOR SHIPMENT BACK TO CUSTOMER
  • ALL HARDWARE MUST BE REMOVED PRIOR TO SHIPPING
  • HARDWARE REMOVAL IS AN ADDITIONAL COST
Prices are subject to change without notice call for latest pricing.
